broken arrow over compiler when launched
August 25, 2015
5:17 am
Avatar
wegunterjr
Member
Forum Posts: 18
Member Since:
August 25, 2015
sp_UserOfflineSmall Offline

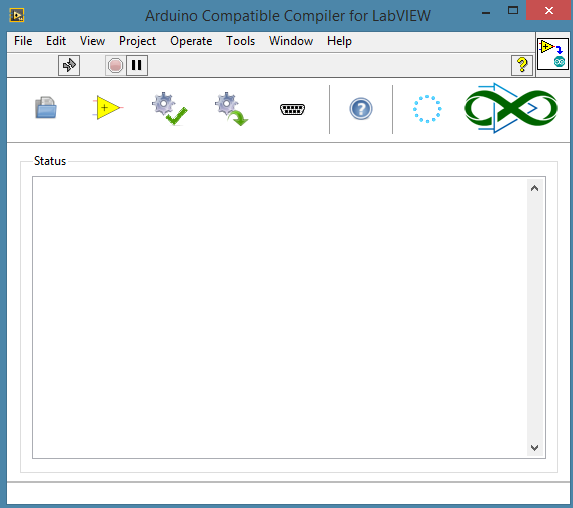

Is it normal for the compiler to show a broken arrow?   I just installed the Home use to test it out and when I launch the compiler from the Tools menu, it launches the compiler GUI, but it shows a broken arrow.  Thoughts?arduinoCompilerError.PNGImage Enlarger

Attachments
August 25, 2015
6:29 am
Avatar
Steffan
Admin
Forum Posts: 305
Member Since:
March 12, 2015
sp_UserOfflineSmall Offline

What do you see as the reason for the broken arrow when you click on it?  Please attach an image. Normally if this happens it is because you have exceeded the 7 day free trial limitation.  You can confirm that by going to help>activate addons in LabVIEW to see if the license shows as expired.

August 25, 2015
1:19 pm
Avatar
wegunterjr
Member
Forum Posts: 18
Member Since:
August 25, 2015
sp_UserOfflineSmall Offline

Hmmmm...just downloaded it yesterday and it says i have 7 days.   Also, no reason is given for an error.

August 25, 2015
1:31 pm
Avatar
filipealtoe
Admin
Forum Posts: 89
Member Since:
March 12, 2015
sp_UserOfflineSmall Offline

What version of LabVIEW are you using the Compiler with? As the documentation states, it needs to be 2014 and above.

Cheers Filipe
August 25, 2015
2:14 pm
Avatar
wegunterjr
Member
Forum Posts: 18
Member Since:
August 25, 2015
sp_UserOfflineSmall Offline

Ah...forgot to add...2014 SP1

August 25, 2015
2:25 pm
Avatar
wegunterjr
Member
Forum Posts: 18
Member Since:
August 25, 2015
sp_UserOfflineSmall Offline

So, i installed using Package manager and it happily installed.



Arduino version 1.6.5 (used windows installer from Arduino website)

LabVIEW 2014 SP1

Arduino Compatible Compiler fro LabVIEW Home 1.0.0.18

August 25, 2015
2:41 pm
Avatar
Steffan
Admin
Forum Posts: 305
Member Since:
March 12, 2015
sp_UserOfflineSmall Offline

Yes, you need to install with VI Package Manager for sure.  Can you tell us how you were installing it without VIPM?

August 25, 2015
2:50 pm
Avatar
wegunterjr
Member
Forum Posts: 18
Member Since:
August 25, 2015
sp_UserOfflineSmall Offline

ha! I re-read what I posted.  I didn't mean to imply I installed it without Package manager,  i have only used the package manger; and when i say happily installed, I mean it installed with no errors; not that it installed and works.  I am still in the situation where it has a broken arrow. Sorry for the confusion.

August 25, 2015
2:52 pm
Avatar
Steffan
Admin
Forum Posts: 305
Member Since:
March 12, 2015
sp_UserOfflineSmall Offline

Oh, ok.  Can you please post an image of the error dialog that comes up when you click the broken error?

August 25, 2015
2:53 pm
Avatar
wegunterjr
Member
Forum Posts: 18
Member Since:
August 25, 2015
sp_UserOfflineSmall Offline

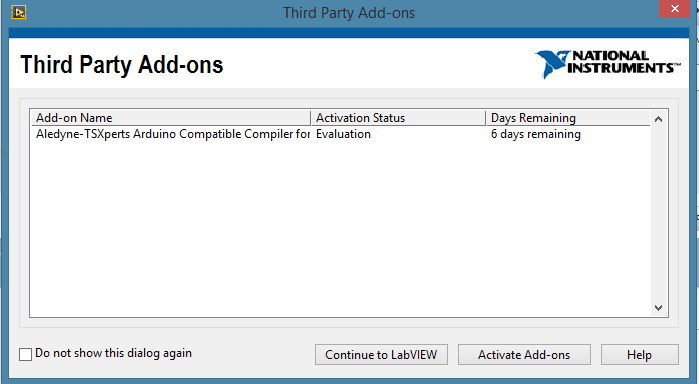

arduinoCompiler_activation_6days.PNGImage Enlargerwhen I start LabVIEW, i get a pop-up from the add-ons asking to activate the compiler and that I have 6 days left.

August 25, 2015
2:55 pm
Avatar
Steffan
Admin
Forum Posts: 305
Member Since:
March 12, 2015
sp_UserOfflineSmall Offline

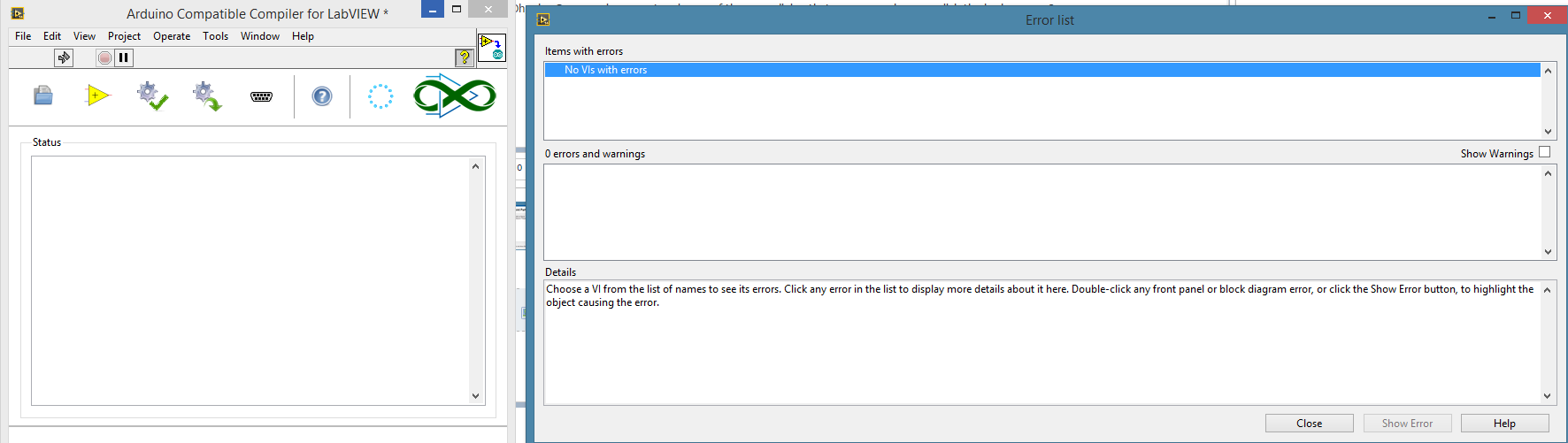

Once again, click the broken arrow and send a screenshot of the dialog that comes up.  Not the add-ons activation dialog.

August 25, 2015
2:56 pm
Avatar
wegunterjr
Member
Forum Posts: 18
Member Since:
August 25, 2015
sp_UserOfflineSmall Offline
August 25, 2015
3:55 pm
Avatar
Steffan
Admin
Forum Posts: 305
Member Since:
March 12, 2015
sp_UserOfflineSmall Offline

Yes, this is very strange.  We have not seen this before.  Can you try to force a recompile?

Force a recompile of the VI (Press Ctrl+Shift and left-click the Run arrow from LabVIEW). This often solves the problem.

There is a thread here that describes this condition:

http://digital.ni.com/public.n.....enDocument

Also, check "Show Warnings" and if anything is listed there, post it back.

You can also try a mass compile of the eintire directory located "C:\Program Files (x86)\National Instruments\LabVIEW 2014\vi.lib\Aledyne-TSXperts\Arduino Compatible Compiler for LabVIEW"

August 25, 2015
4:09 pm
Avatar
wegunterjr
Member
Forum Posts: 18
Member Since:
August 25, 2015
sp_UserOfflineSmall Offline

hmmm... i didn't see any errors list, but did a mass compile.  Wow!  Let me know if you see something in there...



lots of Bad SubVI:

 ### Bad subVI: "Arduino Compatible Compiler for LabVIEW.lvlib:Find And Replace Callbacks.vi" Path="C:\Program Files (x86)\National Instruments\LabVIEW 2014\vi.lib\Aledyne-TSXperts\Arduino Compatible Compiler for LabVIEW\Code Generator\Find and Filter\Find And Replace Callbacks.vi"

August 25, 2015
5:13 pm
Avatar
Steffan
Admin
Forum Posts: 305
Member Since:
March 12, 2015
sp_UserOfflineSmall Offline

Yes that is very strange.  Seems they are all broken.  Can you try opening one of these subVIs and hit the broken arrow to see if it gives any errors or warnings?

Also, what happened when you did a recompile (Ctrl+Shift+Run) of the main Compiler VI (not a mass compile).

Do you have a VM or another machine you can try it on?  We have many users and this is the first reported incident of this so it might be something with your machine.  Hopefully we can get to the bottom of it.

August 25, 2015
5:21 pm
Avatar
wegunterjr
Member
Forum Posts: 18
Member Since:
August 25, 2015
sp_UserOfflineSmall Offline

hmmm...i have been having issues with my machine lately (working on escalation with NI right now).

I had installed LabVIEW on another machine and installed the Arduino COmpiler and all is well on that machine and it doesn't have a broken arrow.

It appears that my main machine is having issues.

I won't worry about my main machine for now...this can be closed. Thank you for the follow up.
