Nested structures in nested VIs
June 22, 2016
9:35 am
Avatar
senthilkumaranms
Member
Forum Posts: 9
Member Since:
June 21, 2016
sp_UserOfflineSmall Offline

Is it possible to have subvi? I tried the blink program as a subvi call in the main program to be compiled. I saved two blink program with different blink timing and repeats then I added them in a main vi and named as combined blink. in arduino compatible compiler, I called the combined blink vi and compiled & downloaded to arduino UNO. Pin 13 LED blinked at a rate of longer delay subvi always, either it was called first or second/ before or after the shorter delay blink subvi.



Please see attached the program.

June 22, 2016
9:40 am
Avatar
lovediwan
Member
Forum Posts: 14
Member Since:
March 2, 2016
sp_UserOfflineSmall Offline

can send the screen shot or can u convert the VI to LV13 as i don't have LV14 on my Laptop

Regards

Love Diwan

June 22, 2016
10:13 am
Avatar
senthilkumaranms
Member
Forum Posts: 9
Member Since:
June 21, 2016
sp_UserOfflineSmall Offline

PLease see blink vi for LV 2013.

June 23, 2016
7:25 pm
Avatar
Steffan
Admin
Forum Posts: 304
Member Since:
March 12, 2015
sp_UserOfflineSmall Offline

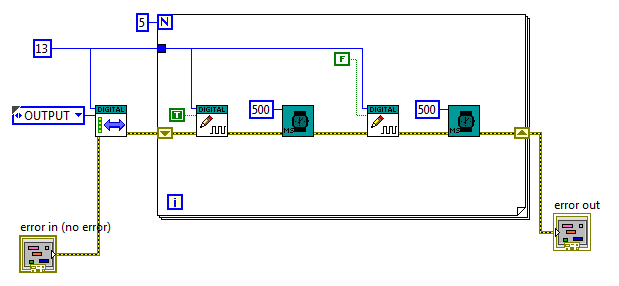

Yes you can use subVIs.  I think what you have run into is a known issue with deeply nested structures through subVIs.  You have a while loop on the main VI, and nested sequence structures within for loops within subVIs.  It is the nested flat sequence structures that are causing a problem.  Simply replace them with the delay APIs (Delay Millis.vi) from the Timing palette to control dataflow.  It is good practice to use this instead of a flat sequence structure.  This should do the trick:

delays.pngImage Enlarger

Attachments
June 27, 2016
5:42 am
Avatar
senthilkumaranms
Member
Forum Posts: 9
Member Since:
June 21, 2016
sp_UserOfflineSmall Offline

Thank you. the solution that you have provided has worked.

At this moment what I understand is I cannot have more than one structure loop in subvi due to some known technical limitations.

since this is a known issue, I request you to rename this topic suitably so that other customers facing the same problem will able to see this topic easily.
